๐ก๏ธ FPAntiFreeCam
Anti-FreeCam/Anti-Xray Protection

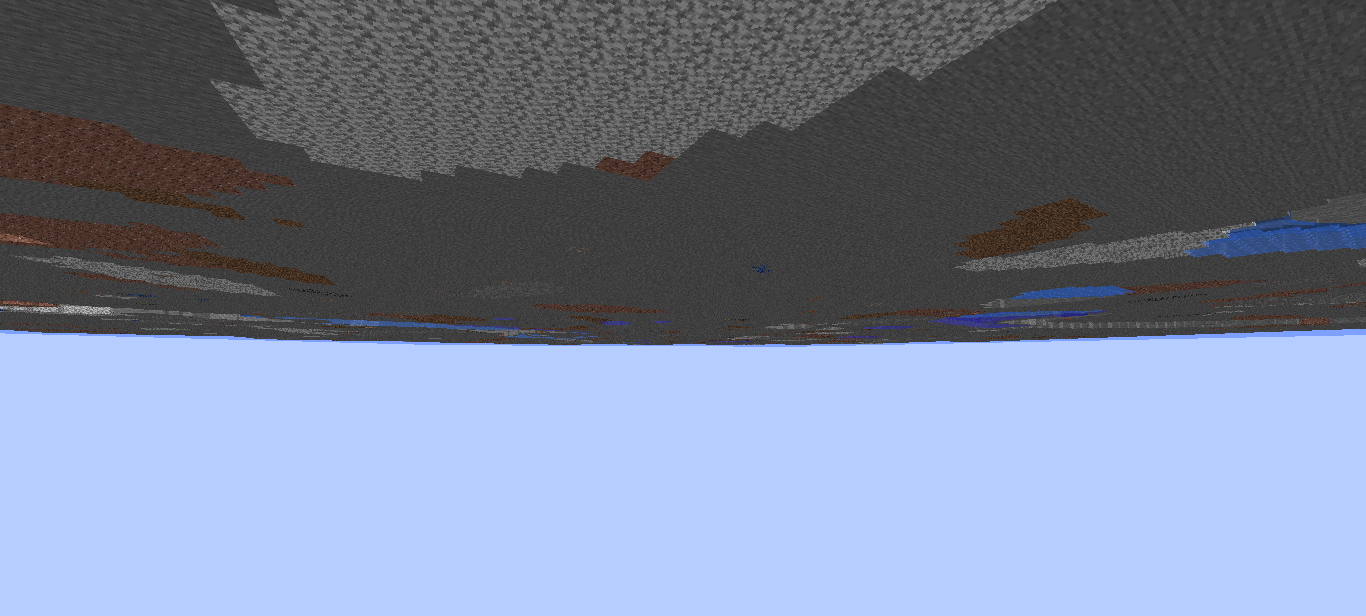

Protect underground bases, caves, and hidden structures from players using FreeCam or X-Ray mods. FPAntiFreeCam intercepts outgoing packets and replaces underground blocks with air. So FreeCam users see nothing but void below the surface.
โ ๏ธ This plugin does not block ore X-ray. It is designed to protect bases, farms, and hidden structures underground.
โจ Features
- ๐๏ธ Anti-FreeCam / Anti-Xray โ hides all underground blocks via packet manipulation.
- ๐ฆ Entity hiding โ conceals mobs, item frames, and farms inside protected zones.
- ๐ Update checker โ notifies admins in-game and in console when a new version is available.
- โก Async & optimized โ tick-batched chunk refreshes, minimal performance impact.
- ๐ Universal platform support โ Paper, Purpur, Spigot, Bukkit & Folia (multi-threaded region-aware scheduling).
- ๐ฑ Bedrock support โ Geyser / Floodgate compatible.
๐ฅ๏ธ Commands
| Command | Description | Permission |
|---|---|---|
/fpac reload |
Reload the config | fpantifreecam.admin |
/fpac stats |
Show live plugin stats | fpantifreecam.admin |
/fpac debug |
Toggle debug logging | fpantifreecam.admin |
/fpac world <add|remove> <world> |
Add/remove a protected world | fpantifreecam.admin |
/fpac bypass <player> |
Toggle bypass for a player | fpantifreecam.admin |
/fpac help |
Show command help | fpantifreecam.admin |
/fpreload |
Quick config reload shortcut | fpantifreecam.admin |
/fpdebug |
Quick debug toggle shortcut | fpantifreecam.admin |
Aliases: /fpafc, /antifreecam, /fpacreload, /fpacdebug
๐ Permissions
| Permission | Description | Default |
|---|---|---|
fpantifreecam.admin |
Full access to all commands | OP |
fpantifreecam.reload |
Reload configuration | OP |
fpantifreecam.debug |
Toggle debug mode | OP |
fpantifreecam.world |
Manage protected worlds | OP |
fpantifreecam.bypass |
Exempt from protection (staff/builders) | โ |
โ๏ธ Config
Click to expand config.yml
# ============================================================
# FPAntiFreeCam โ Configuration
# Anti-FreeCam protection for Spigot / Paper / Folia
# 1.19+ ยท 1.20+ ยท 1.21+ ยท 26.1+
# ============================================================
# PLEASE DO NOT CHANGE!!
config-version: 4.0
# โโ General โโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโ
settings:
# Check for updates on startup and notify admins (fpantifreecam.admin permission) on join.
update-checker: true
# Language file in plugins/FPAntiFreeCam/lang/<language>.yml
language: "en"
# Print verbose debug info to console (leave false in production)
debug-mode: false
# Seconds a player must wait between FreeCam-state refresh triggers.
# Prevents spam-refreshing when rapidly crossing the surface Y level.
refresh-cooldown-seconds: 3
# โโ Protected worlds โโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโ
# Add every world name that should have underground-hiding active.
# Tip: avoid nether/end worlds โ they can cause visual glitches.
worlds:
list:
- "world"
# - "survival"
# - "resource_world"
# โโ FreeCam protection thresholds โโโโโโโโโโโโโโโโโโโโโโโโโโโโ
protection:
# Y level at-or-above which hiding is ALWAYS armed.
# Players standing at or above this Y cannot see blocks below void-y.
# Recommended: set to roughly your world's actual surface height.
# Example: 64 for a normal overworld, 31 for a flat/custom world.
# NOTE: This replaces the old "surface-y" key. Both are supported.
protection-y: 64.0
# Blocks below protection-y before protection turns OFF when descending.
# Prevents chunk-refresh spam when jumping at the surface boundary.
hysteresis-y: 2.0
# Every block at-or-below this Y is replaced with the void block
# (replacement.block-type) when protection is active.
# Pick the highest Y where your bases/storage actually sit, then add ~5 blocks.
# Unsure? Stand on your deepest vault floor in-game and use that Y minus 2.
# Default 15 works for typical overworld bases dug to Y~11-20.
void-y: 15
# Optional per-world void-y overrides (world name -> Y level).
# Worlds not listed here use the global void-y above.
# per-world-void-y:
# world_nether: 40
# resource_world: 20
# Pie-chart protection: strips tile entities and entity spawns from packets
# while protection is active. This prevents players from using the F3 pie chart
# to find bases (chests, mob farms, etc.) through the void.
pie-chart-protection: false
# Absolute Y floor. Players BELOW this value always have protection OFF.
# Fixes the void-floor bug when digging straight down near void-y level.
# Rule: void-y < deep-deactivation-y < protection-y
# Example with defaults: 15 < 20 < 64
deep-deactivation-y: 20.0
# Raycast zone: players between deep-deactivation-y and protection-y.
# Two sub-checks decide whether to arm protection here:
# 1. Look-direction: camera pointing upward (freecam angle exploit)
# 2. Sky access: open vertical path to protection-y (cave ceiling gap)
raycast:
enabled: true
# Minimum upward look vector (0.0โ1.0) to arm protection. ~0.15 โ 9ยฐ above horizontal.
min-upward-angle: 0.15
# Milliseconds of stability before applying a state change via raycast.
# Prevents flicker near zone boundaries. 500ms is a good balance.
deactivation-debounce-ms: 500
# Also cast diagonal rays (NE/NW/SE/SW) to catch angled cave openings.
multi-directional: true
# โโ Replacement block โโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโ
# Block type sent to the client in place of hidden underground blocks.
# "air" produces a clean void look (recommended).
# "stone" can be used to fake a solid floor instead.
replacement:
block-type: "air"
# โโ Entity hiding โโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโ
entities:
# Hide non-player entities that are inside the hidden zone.
# Prevents FreeCam from revealing mob farms / storage mobs.
hide-entities: true
# โโ Player notifications โโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโ
notifications:
action-bar:
# Show a HUD message while protection is active for a player.
enabled: false
message-active: "&cโ FreeCam Protected"
# โโ Anti-cheat helpers โโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโ
anti-cheat:
freeze-detection:
# Log a console warning if a protected player above protection-y
# has not moved for N seconds (possible position-spoofing FreeCam).
enabled: false
seconds: 30
# โโ Performance โโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโโ
performance:
# Folia: enable region-aware chunk scheduling (auto-detected)
folia-optimizations: true
# Paper/Spigot: max chunks refreshed per server tick
max-chunks-per-tick: 40
# Instant protection: force a large-radius refresh when a player
# first enters the surface-y zone so bases are hidden immediately.
instant-protection:
enabled: true
# Chunks radius to refresh when instant protection fires
instant-load-radius: 14
# Pre-load distance in blocks above surface-y where instant refresh is armed
pre-load-distance: 10
# Force re-encode of chunk data immediately (prevents momentary base glimpse)
force-immediate-refresh: true
# Limit how far chunk REFRESHES reach when protection toggles.
# WARNING: does NOT limit packet masking โ but stale client cache outside
# this radius may briefly show real blocks until those chunks reload.
# Leave disabled unless you need the perf savings and accept that tradeoff.
limited-area:
enabled: false
chunk-radius: 4
โ Compatibility
| Platform | Supported |
|---|---|
| Paper 1.19 โ 26.1.2+ | โ |
| Purpur | โ |
| Spigot | โ |
| Bukkit | โ |
| Folia | โ |
| Geyser / Floodgate | โ |
๐ฌ Support
Discord: Join our Discord Server GitHub: FPAntiFreeCam GitHub
Secure what players shouldn't see.
